RYOPOLive inference with object interaction
≈18 ms online inference · ≤30 FPS camera limit
RTX 4080 Super · without ID tracking.
RGB-D · CATEGORY-LEVEL OBJECT POSE ESTIMATION
RYOPOBringing End-to-End Category-Level
Object Pose Estimation into Real Time
PIT IN Co., Republic of Korea
One full-frame predictor. Multiple objects.
9-DoF poses in real time.
Category-level predictionREAL275
Mask-free live demonstrationRGB-D camera
31.8 FPS
RYOPO · RTX A6000
51.4 FPS
Mask-free variant · RTX A6000
RGB + Depth
No external instance segmentor
From a scene to
object poses.
Accurate category-level pose estimation often starts with a separate instance segmentor, then processes each object crop. RYOPO brings detection, segmentation, and pose estimation into a single trainable RGB-D set predictor, without explicit CAD-derived shape priors.
Shared image and scene encoding avoids repeated crop encoding. Object queries connect measured 3D observations to an explicit pose state, refining rotation, translation, and metric size for multiple objects.
OVERVIEW
FROM CAPTURED DATA TO LIVE PREDICTIONS
Real-world showcases
Both demos use a RealSense L515 RGB-D camera and mask-free RYOPO models trained separately on their respective datasets.
The plush-toy model was trained on 12 videos of one physical plush toy. The two additional instances in the live recording were not included in its training data.
Training captures12 videos · One instance
Live predictionsSeen + two unseen
HEX-BOLT DEMONSTRATIONS
One frame. Multiple object poses.
1 / 3
Hex-bolt annotations assume continuous symmetry about the local Y axis.
Live inference under fast camera motion
Live RGB-D inference during rapid camera motion.
Per-frame prediction + ID tracking
Left: per-frame RYOPO. Right: a separate tracker adds object IDs. This extension is not part of the paper’s benchmark results.
HOW WE LABEL THE CAPTURES

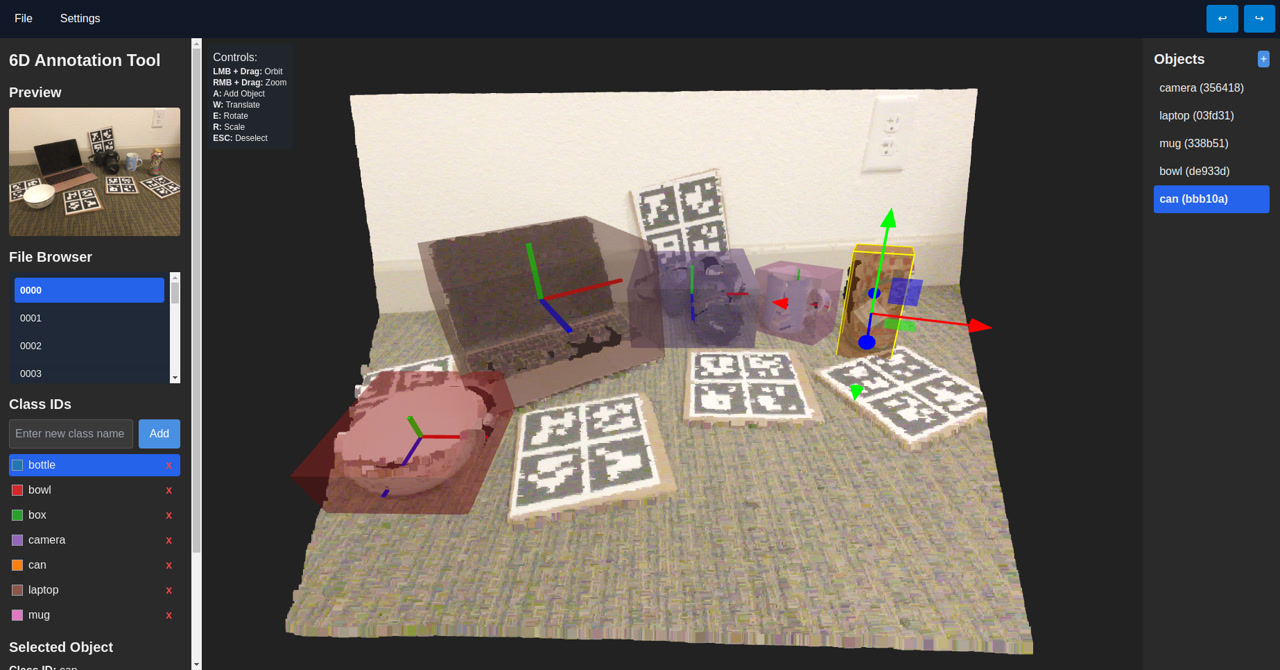

RGB-D annotation with SnapPose
Our custom datasets were labeled with SnapPose, a browser-based tool for annotating object rotation, translation, and metric size in RGB-D point clouds.
- Capture RGB-D with marker-based camera poses.
- Label a reference frame in the 3D workspace.
- Propagate and inspect labels across a static-object capture using camera poses.
Markers are used for annotation, not pose inference.
SnapPose on GitHub Public release planned · currently private
SEE THE PREDICTIONS
Benchmark comparisons
RYOPO, AG-Pose (DINO), CleanPose, and VI-Net on the same RGB-D frames.
Predicted cuboidsGround truthRGB axes: x / y / z
20 FPS playback, not inference speed.
QUANTITATIVE RESULTS
All-object accuracy
Independent 3D IoU and all-object pose AP (%); missed detections count as failures.
| Method | IoU50 | 5° 2 cm | 5° 5 cm | 10° 5 cm |
|---|---|---|---|---|
| DPDN | 83.4 | 38.1 | 42.2 | 65.3 |
| HS-Pose | 82.8 | 38.5 | 46.6 | 70.1 |
| VI-Net | 83.1 | 40.7 | 47.1 | 68.3 |
| AG-Pose (DINO) | 84.1 | 46.4 | 52.7 | 71.0 |
| CleanPose | 84.1 | 50.4 | 55.1 | 72.3 |
| RYOPO | 93.0 | 38.7 | 51.1 | 73.6 |
| RYOPO, mask-free | 91.9 | 36.7 | 48.5 | 71.9 |
Per-object methods use the benchmark’s supplied predicted masks; RYOPO uses its own predictions.
Mask-free: separately trained with adjusted settings. Accuracy: eager FP32.
HOW IT WORKS
Object queries meet measured geometry.
Built on the DETR-style EdgeCrafter backbone, RYOPO integrates object-associated depth observations and explicit pose-state refinement into a shared full-frame predictor.
Query-conditioned geometry
Predicted object regions associate measured depth points with each query. Geometry, image features, and observation support form object point descriptors.
Geometry feedback
Object and shared scene features update the queries during set decoding, connecting image-based predictions to 3D observations.
Pose-state refinement
The object query and current pose condition attention to point descriptors. Residual corrections update the pose and condition subsequent refinement.
Citation
Provisional entry. The arXiv ID will be added after submission.
@misc{lee2026ryopo,
title = {{RYOPO}: Bringing End-to-End Category-Level Object Pose Estimation into Real Time},
author = {Hakjin Lee and Junghoon Seo and Jaehoon Sim},
year = {2026},
eprint = {ARXIV_ID_PENDING},
archivePrefix = {arXiv}
}
